Friday, January 31, 2020

Philips 21PT5506, 28PT4457, 24PW 6606 - SMPS (Power supply), vertical and horizontal scanning and audio amplifier schematic


Applicable to - Philips 21PT5306, 21PT5506, 25PT4457, 25PT5107, 25PT5506, 28PT4406, 28PT4457, 28PT5107, 29PT5306, 29PT5506,  24PW6006, 28PW5407, 28PW6006, 32PW6003, 32PW6006, 82PW6216, 63TA5216, 70WA6216 -  L01.1E AB chassis
Used Ics - STP7NB60FP (SMPS power swithing FET), TEA1507 (SMPS control), BU4509DX (H-Out transistor)

Tuesday, January 21, 2020

Noblex LCD TV SMPS schematics - Noblex 4H.B1090 SMPS schematic


Noblex 4H.B1090 SMPS schematic – using FAN6961, TEA1530AT, LTV-817, 2SK4100LS(power switching FET)

Noblex LCD TV SMPS schematic – using PC123Y52,L6598DP(High voltage resonant controller), L6562DP(Transition mode PFC controller), MR4010-7101

Sunday, January 12, 2020

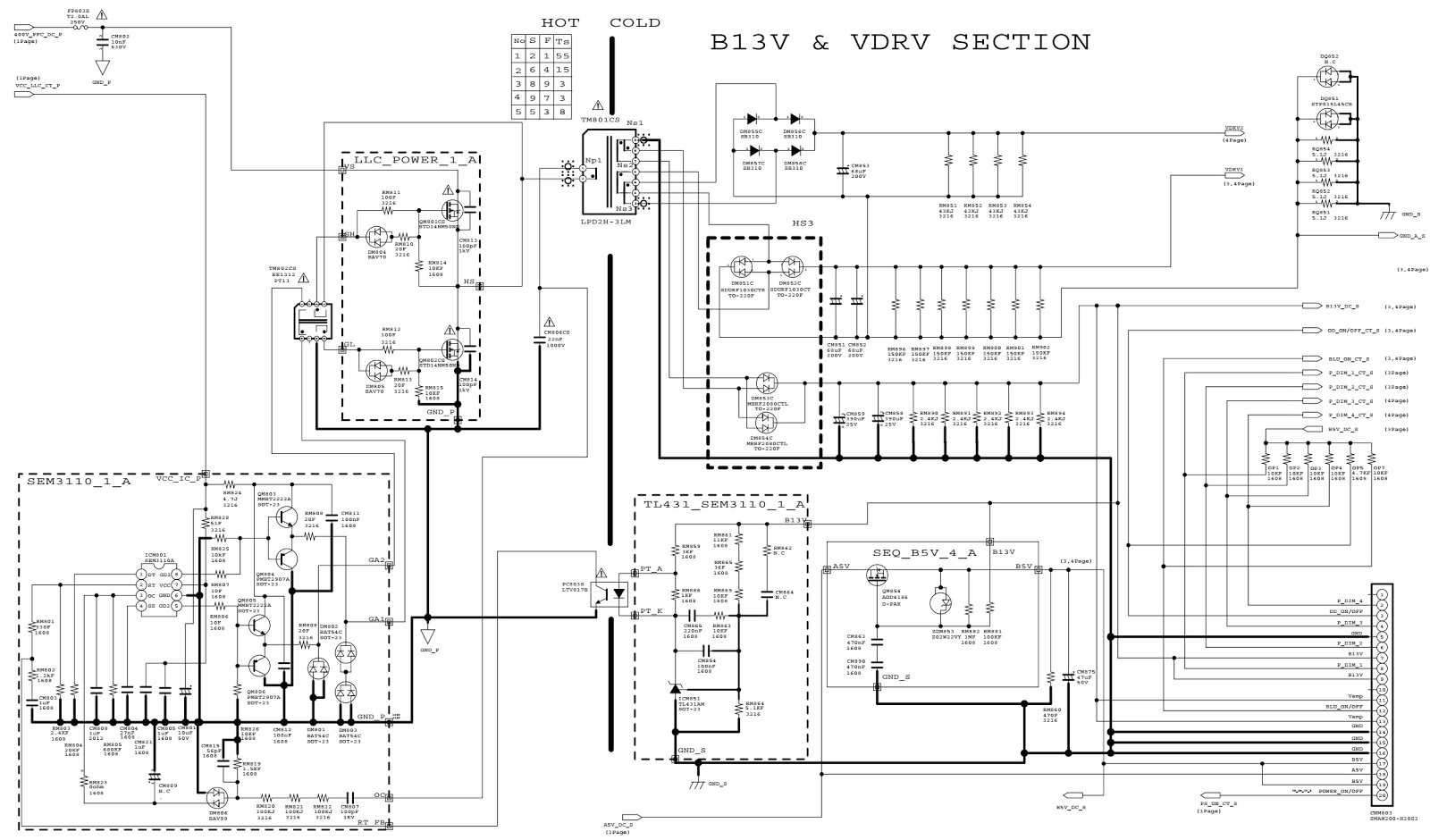

Samsung UE55F6670SB LCD TV SMPS schematic – BN44-00622C

Using ICs SEM3050, STR2A153D, SLC2013M(MAP3321)

Monday, January 6, 2020

SLC195EM8 Emerson 19 inch color LCD television-NTSC-ATSC- US Model - how to enter the service mode, service adjustments, full schematic


Electrical adjustments.
Adjustments are required after replacing circuit components and certain mechanical parts.
It is important to perform these adjustments only after all repairs and replacements have been completed.  Also, do not attempt these adjustments unless you do not have proper equipment is available.
To do the adjustments, you need a service remote control.  There is no service remote control, to buy anywhere. Service remote control can be prepared from the supplied user remote control.
See how to prepare a service remote control, from the user remote control.
How to make the service remote control unit.
Cut the marked portion shown below illustration, of your user remote control. There is a service button underneath.  You can get access to Service Button.
Pressing it, can see the service mode screen.
Be carefull to do adjustments in service mode.

Service mode:
1. Use the service remote control unit.
2. Turn the power on.
3. Press the service button on the service remote control unit as shown in fig.
Purity check mode. Up
This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.
1. Enter the service mode.
2. Each time pressing [7] button on the service remote control unit, the display changes as follows.
Auto calibration [component]
Purpose: to bring the color adjustment of each component into standard alignment.
Symptom of maladjustment: if this adjustment is incorrect, component signals do not reproduce the corresponding color.
1. Input 1080i 100% color bar signal.
2. Enter the service mode.
3. To enter the auto calibration adjustment mode, press [6] button on service the remote control unit.
4. To start auto adjustment, press [1] button on the service remote control unit.
- In the auto adjustment mode, “please wait” appears on the screen.
- Upon completion, “ok” appears on the screen.
Auto calibration [DTV]
purpose: to bring the color adjustment of DTV into standard alignment.
Symptom of maladjustment: if this adjustment is incorrect, DTV signals do not reproduce the corresponding color.
1. Enter the service mode.
2. To enter the auto calibration adjustment mode, press [6] button on the service remote control unit.
3. To start auto adjustment, press [2] button on the service remote control unit.
- In the auto adjustment mode, “please wait” appears on the screen.
- Upon completion, “ok” appears on the screen.
Auto calibration [PC]
purpose: to bring the color adjustment of pc into standard alignment.
Symptom of maladjustment: if this adjustment is incorrect, pc signals do not reproduce the corresponding color.
1. Input XGA 100% white signal.
2. Enter the service mode.
3. To enter the auto calibration adjustment mode, press [6] button on service the remote control unit.
4. To start auto adjustment, press [3] button on the service remote control unit.
- In the auto adjustment mode, “please wait” appears on the screen.
- Upon completion, “ok” appears on the screen.
The following adjustment normally is not attempted in the field. Only when replacing the LCD panel then adjust as a preparation.
White balance adjustment [video]
purpose: to mix red, green and blue beams correctly for pure white.
Symptom of maladjustment: white becomes bluish or reddish.
1. Operate the unit for more than 20 minutes.
2. Input the white purity
3. Set the color analyzer to the chroma mode and bring the optical receptor to the center on the lcd-panel surface after zero point calibration as shown below.
Note: the optical receptor must be set perpendicularly to the LCD panel surface.
4. Enter the service mode. press [vol. dn] button on the service remote control unit and select “c/d1” mode.
3. Set the color analyzer to the chroma mode and bring the optical receptor to the center on the lcd-panel surface after zero point calibration as shown above.
Note: the optical receptor must be set perpendicularly to the LCD Panel surface.
4. Enter the service mode. Press [vol.dn] button on the service remote control unit and select “c/d2” mode.
5. [Cutoff]
press [1] button to select “cor” for red cutoff adjustment. Press [3] button to select “cob” for blue cutoff adjustment.
[Drive]
press [4] button to select “dr” for red drive adjustment. Press [6] button to select “db” for blue drive adjustment.
6. In each color mode, press [ch.up/dn] buttons to adjust the values of color.
7. Adjust cutoff and drive so that the color temperature becomes 11000k (x= 0.279 / y= 0.272 ±0.005)
White balance adjustment [component / DTV]
purpose: to mix red, green and blue beams correctly for pure white.
Symptom of maladjustment: white becomes bluish or reddish.
1. Operate the unit for more than 20 minutes.
2. Input the white purity. as described above.
3. Set the color analyzer to the chroma mode and bring the optical receptor to the center on the lcd-panel surface after zero point calibration as shown below.
Note: the optical receptor must be set perpendicularly to the lcd panel surface.
4. Enter the service mode. press [vol.dn] button on the service remote control unit and select “c/d2” mode.
5. [cutoff]
press [1] button to select “cor” for red cutoff adjustment. Press [3] button to select “cob” for blue cutoff adjustment.
[drive]
press [4] button to select “dr” for red drive.  press [6] button to select “db” for blue drive adjustment.
6. in each color mode, press [ch.up/dn] buttons to adjust the values of color.
7. Adjust cutoff and drive so that the color temperature becomes 11000k (x= 0.279 / y= 0.272 ±0.005).
How to initialize the lcd television
1. turn the power on.
2. To enter the service mode, press the service button on the service remote control unit.
 To cancel the service mode, press [power] button on the service remote control unit.
3. Press [display] button on the service remote control unit to initialize the lcd television.
4. "ff" will appear in the upper left of the screen. "ff" color will change to red from white when initializing is complete.
Test equipment required
1. DC voltmeter
2. NTSC pattern generator (color bar w/white window, red color, dot pattern, gray scale, monoscope, multi-burst)
3. Remote control unit
4. Color analyzer.
Schematic [full]
